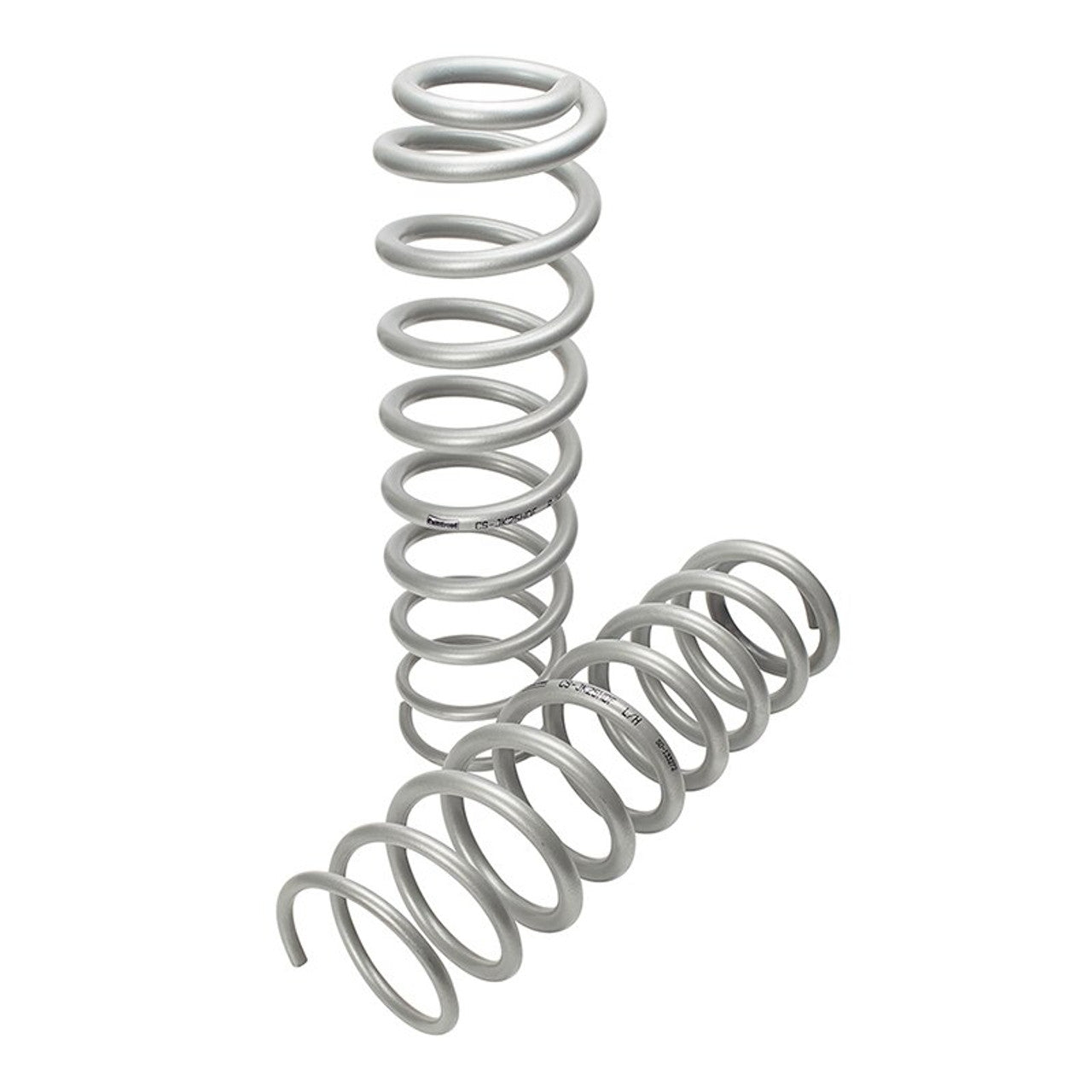

CalOffroad Platinum Series Rear Coil Springs, 2 INCH Lift, Heavy Duty Fits Ford Ranger Raptor 2018 +

Name: CalOffroad Platinum Series Rear Coil Springs, 2 INCH Lift, Heavy Duty Fits Ford Ranger Raptor 2018 +
Brand: CalOffroad
SKU: CSRAPRHD-2
Price: 300.0 AUD
Availability: InStock

SKU:CSRAPRHD-2

$300.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Fits Ford Ranger Raptor 2018 +

CalOffroad Heavy Duty Platinum Series Rear Coil Springs are designed and manufactured in Australia using high-grade Australian made steel suited specifically to the Ranger Raptor running Fox coilovers. The Fox Coilovers feature internal bypass technology and we have built our coils to work on this Fox platform. Dyno testing has been carried out to ensure the coil rate is tuned to match the shock valving, achieving the smoothest possible ride. These coil springs are a must have for any Raptor running heavy accessories on the rear, as they will support the extra weight of your truck, as well as maintain its height.

Product details:

Suits Ranger Raptor running Fox coilovers (2018 on)
Sold in pairs
Suitable for 300-500kg in weight on the rear
Increases the ride height by approximately 2 inches

Write a review

Show more reviews

0 reviews

Write a review

Merchant description

Featured

With photo

With video

Easy to assemble

Attrative design

High quality

Show more reviews

View full details

Weight Rating Chart

Front AccessoryFront Accessory	Average WeightAverage Weight	Average RangeAverage Range
Plastic Factory BumperPlastic Factory Bumper	00	00
Alloy Bull BarAlloy Bull Bar	35kg77lb	20 - 40kg44 - 88lb
Steel Bull Bar LightSteel Bull Bar Light	52kg115lb	45 - 60kg99 - 132lb
Steel Bull Bar HDSteel Bull Bar HD	69kg152lb	65 - 77kg143 - 170lb
Winch with RopeWinch with Rope	28kg62lb	20 - 36kg44 - 79lb
Winch with CableWinch with Cable	35kg77lb	29 - 40kg64 - 88lb
Dual BatteryDual Battery	22kg49lb	16 - 28kg35 - 62lb
Rock SlidersRock Sliders	52kg115lb	35 - 60kg77 - 132lb
Alloy Bash / Skid PlatesAlloy Bash / Skid Plates	14kg31lb	9 - 20kg20 - 44lb
Steel Bash / Skid PlatesSteel Bash / Skid Plates	23kg51lb	13 - 40kg29 - 88lb
Brush BarsBrush Bars	7kg15lb	5 - 10kg11 - 22lb

Front Weight Rating

Front Weight RatingFront Weight Rating	Weight (kg)Weight (lb)
LightLight	0kg - 50kg0lb - 110lb
MediumMedium	50kg - 100kg110lb - 220lb
HeavyHeavy	100kg - 250kg220lb - 551lb

Average Rear Weight by Accessory

Rear AccessoryRear Accessory	Average Weight (kg)Average Weight (lb)	Average Range (kg)Average Range (lb)
Factory TubFactory Tub	0kg0lb	0kg0lb
Alloy Tray Standard LengthAlloy Tray Standard Length	150kg331lb	150kg - 200kg331lb - 441lb
Steel Tray Standard LengthSteel Tray Standard Length	272kg600lb	265kg - 300kg584lb - 661lb
Tool Box One Side LoadedTool Box One Side Loaded	85kg187lb	70kg - 100kg154lb - 220lb
Tool Box Two Sides LoadedTool Box Two Sides Loaded	170kg375lb	140kg - 200kg309lb - 441lb
Dog BoxDog Box	90kg198lb	60kg - 150kg132lb - 331lb
CanopyCanopy	233kg514lb	200kg - 300kg441lb - 661lb
Rear BarRear Bar	57kg126lb	40kg - 80kg88lb - 176lb
Long Range Fuel Tank LoadedLong Range Fuel Tank Loaded	200kg441lb	190kg - 220kg419lb - 485lb
Drawers UnloadedDrawers Unloaded	81kg179lb	60kg - 114kg132lb - 251lb
Fridge Drop SlideFridge Drop Slide	44kg97lb	40kg - 50kg88lb - 110lb
FridgeFridge	24kg53lb	20kg - 29kg44lb - 64lb
Steel Wheels Beadlock ImitationsSteel Wheels Beadlock Imitations	18kg40lb	17kg - 19kg37lb - 42lb
31" Tyres31" Tyres	22kg49lb	22kg49lb
35" Tyres35" Tyres	30kg66lb	30kg66lb

Rear Weight Rating

Rear Weight RatingRear Weight Rating	Weight Range (kg)Weight Range (lb)
Extra Light DutyExtra Light Duty	0kg - 100kg0lb - 220lb
Light DutyLight Duty	100kg - 300kg220lb - 661lb
Medium DutyMedium Duty	300kg - 500kg661lb - 1102lb
Heavy DutyHeavy Duty	500kg - 600kg1102lb - 1323lb
Extra Heavy DutyExtra Heavy Duty	600kg +1323lb +
Mining SpecMining Spec	Mining SpecMining Spec

*DISCLAIMER - Weights, Average Weights and Ranges are given as a rough guide only as each vehicle can vary. Don't hesitate to contact us if you need help.
