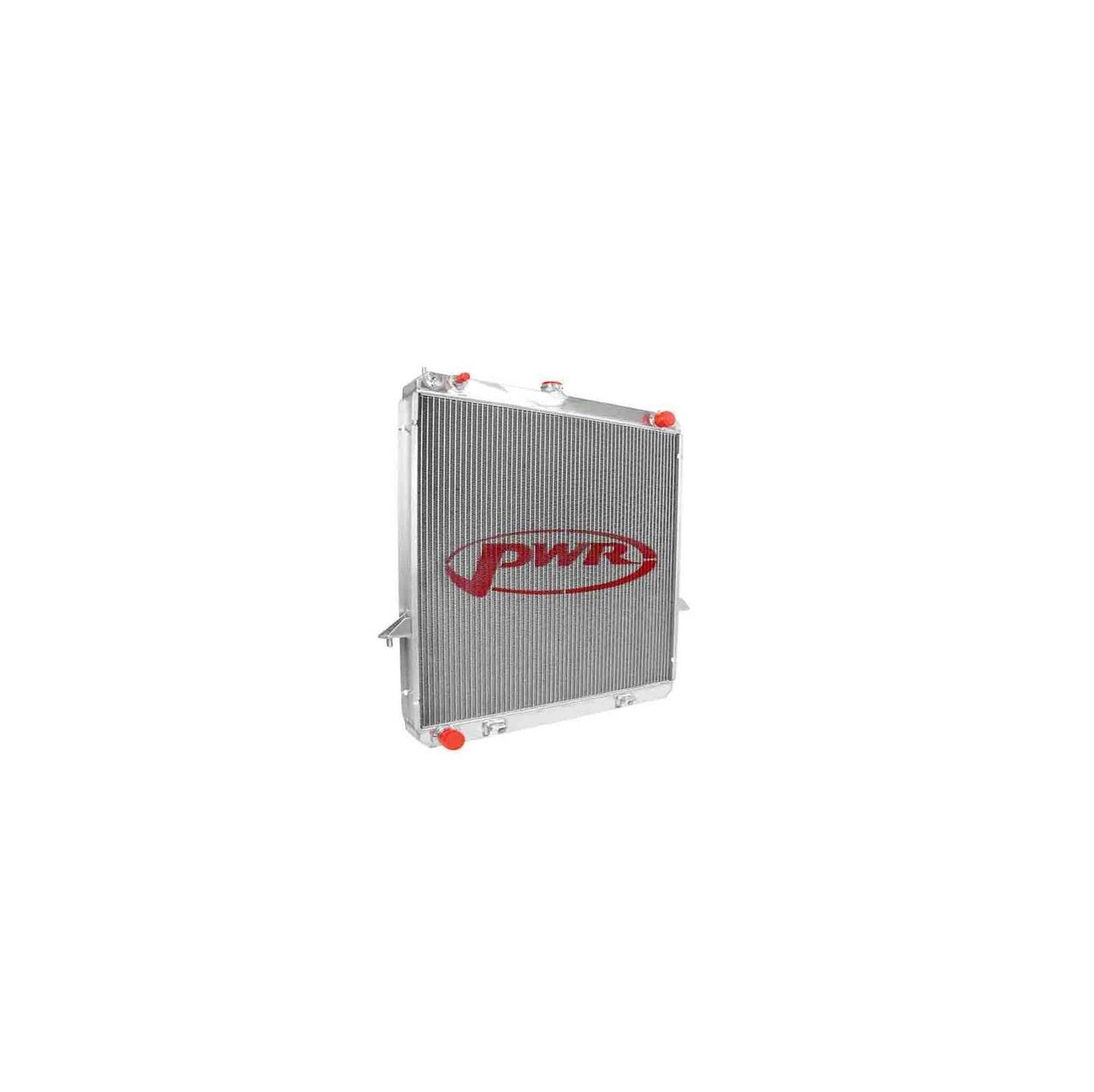

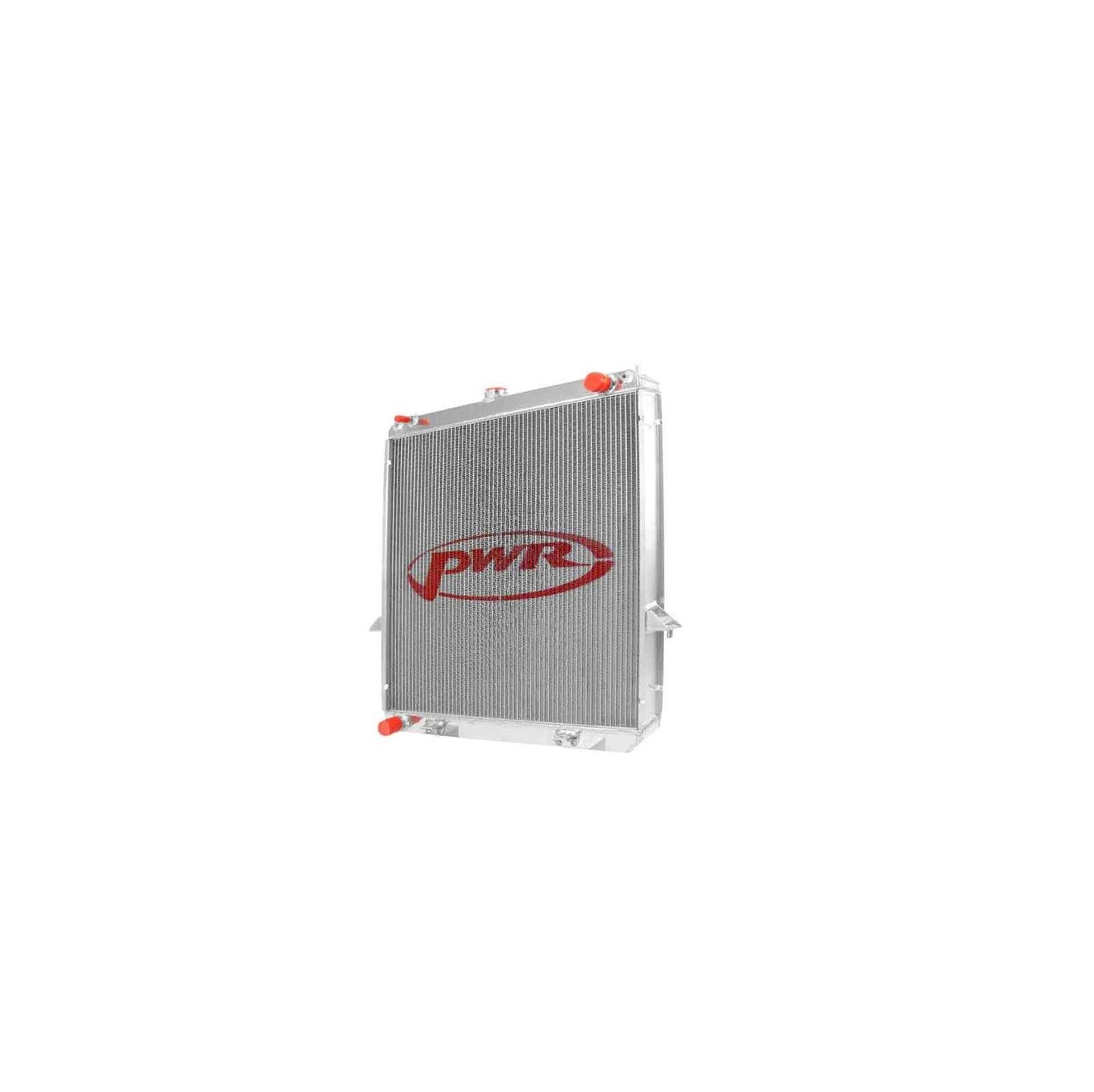

PWR 55mm Radiator (Nissan Patrol Y61 GU3 4.2TD/3.0TD 03-16)

PWR 55mm Radiator (Nissan Patrol Y61 GU3 4.2TD/3.0TD 03-16)

SKU:PWR5571

Regular price $1,704.24 AUD
Regular price Sale price $1,704.24 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

When it comes to keeping cool in the hot Australian climate, PWR’s range of 4WD High Performance Radiators will handle the extreme conditions. Whether it’s towing the caravan, camper trailer or driving through the soft sands in the top end, you can travel with ease. The PWR range are designed to fit in the original mounting position requiring no modification and allow the original plastic shroud and brackets to bolt directly to the unit.

  • Up to 30% more efficient than Standard OEM using the latest tube & fin technology
  • Heavy duty core combinations using 42, 55 & 68mm cores
  • Revolutionary fin pitch from 10-22FPI and louver angles
  • Thicker wall and high tensile Sheetmetal to handle the harshest of corrugations
  • Use of sub header plates & expansion joints to further strengthen the core
  • World class TIG welding by our passionate fabricators
  • State of the art controlled atmosphere brazing process
  • All items CAD designed to meet ISO9001 International standards for repeatability
  • Proven performance backed by comprehensive wind tunnel testing
  • Pressure tested and guaranteed
  • 1 Year manufactured warranty
  • 100% Australian made

SPECIFICATIONS

  • Aluminium
  • Polished Sheet Metal Tanks

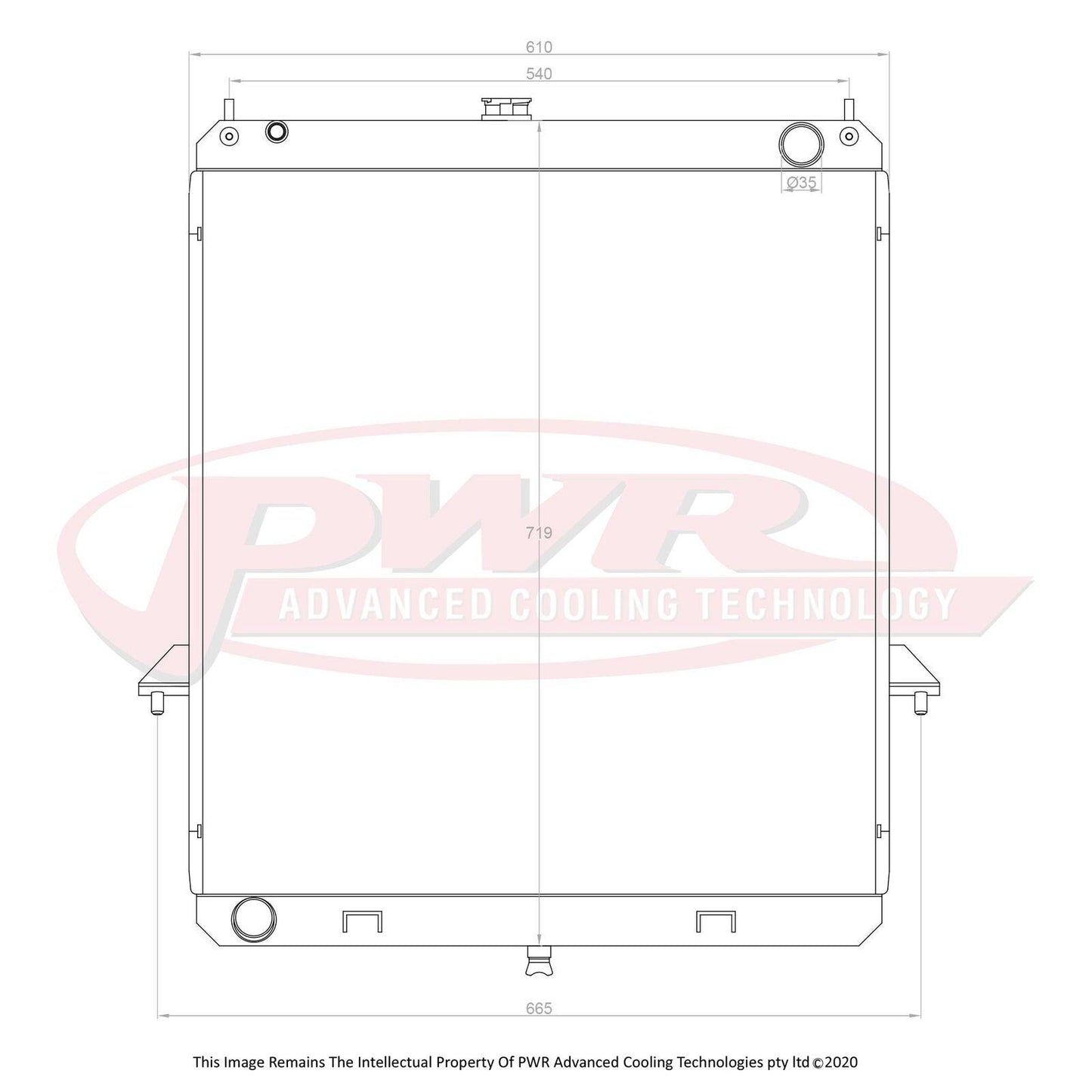

  • 719 x 610 x 70mm
  • Rolled Dimple Tube and Fin
  • Factory Size Outlets
  • Radiator Cap Sold Separately

This product will take 4 weeks to manufacture

WHAT'S INCLUDED

  • 1 x Rolled Dimple Tube and Fin Radiator

COMPATIBILITY

  • NISSAN Patrol Y61 GU3 4.2TD and 3.0TD Diesel Engine (2003 - 2016) Due to a thicker design radiator, trimming of the plastic shroud required around bottom corners to allow radiator to seat properly in lower pins. Trimming of shroud also required around top hose area.
